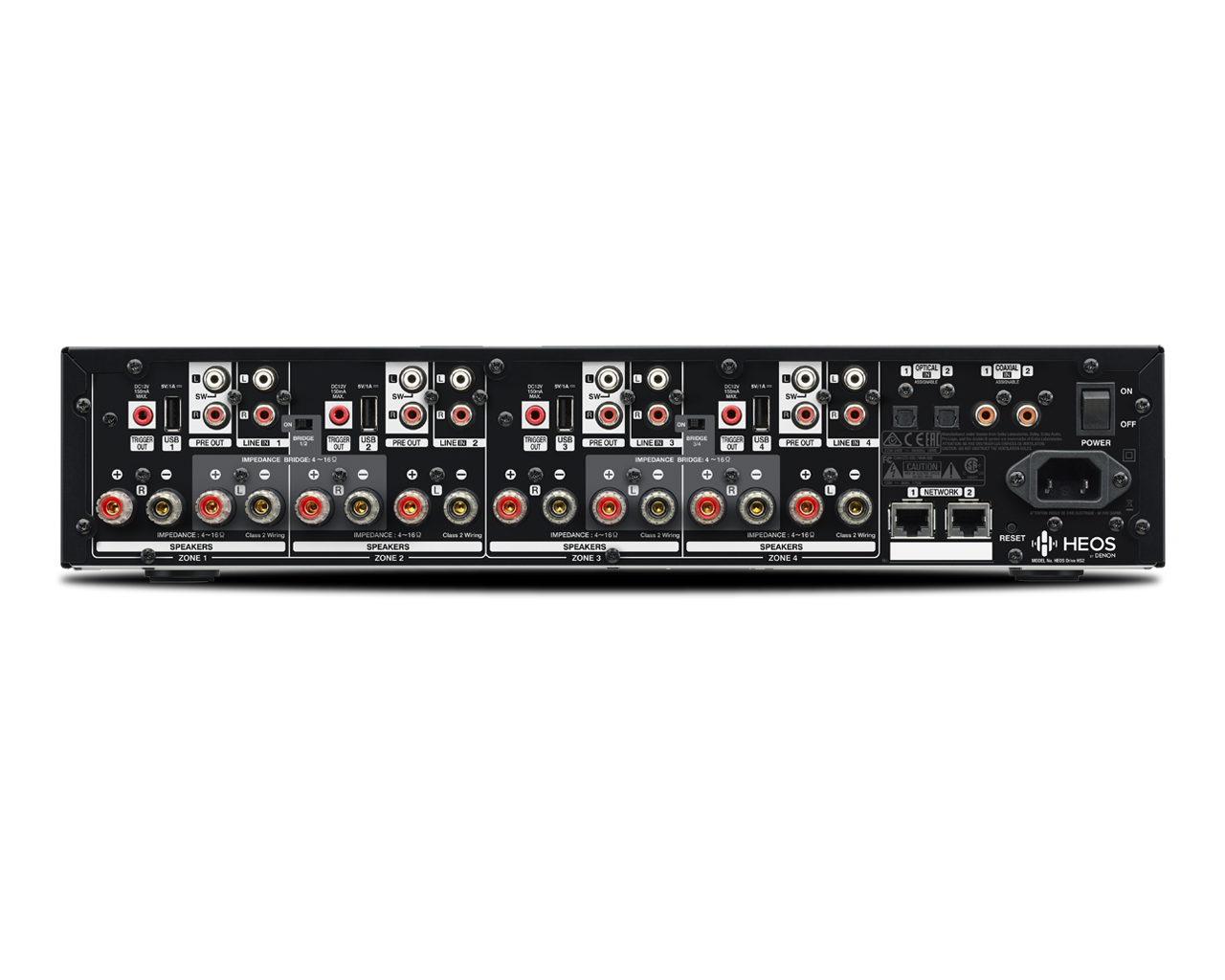

HEOS Drive multi-zone Amplifier
HEOS Drive multi-zone Amplifier
Couldn't load pickup availability
KEY FEATURES:
Designed by custom integration specialists for custom integration professionals, HEOS Drive HS2 is a unique 4 zone whole home audio distribution system with
8 channels of Class D amplification, all in a single 2U tall chassis that features both Dolby Digital and Dolby Digital+ decoding with stereo downmixing.
Rated at 60 watts per channel into each of the 8 channels (20Hz~20kHz, .05% THD,
8 ohms, All Channels Driven), 1 or 2 stereo amp pairs can be bridged for single channel high power output (130 watts), and the HEOS Drive HS2 features low impedance drive capability (4 ohms).
AUDIO SYSTEM
Class D Digital Amplification:
8 x 60 (20Hz-20kHz, .05% THD) watts of Class D digital amplification provide high efficiency, lowest distortion and widest dynamic range.
Auxiliary Analogue Line Input: The 4 stereo analogue auxiliary line input lets users connect devices with analogue stereo outputs directly to the HEOS Drive HS2.
4 Digital Inputs: The 2 optical and 2 coaxial line inputs lets users connect devices with an optical or coaxial digital output directly to the HEOS Drive HS2.
Subwoofer Pre-out: Connect up to 4 powered subwoofers to the HEOS Drive HS2 for additional bass.
MUSIC SOURCES
Music Services Supported:
The HEOS app lets you choose from popular subscription streaming services including Spotify, Deezer, TuneIn, MOOD:MIX, Napster, SoundCloud and Tidal with
more coming soon*.
Music Stored On Phone/Tablet: iTunes music stored locally on your iOS device, music files on your Android or Kindle FireTM device.
USB Storage: HEOS Drive HS2 supports USB hard disc drives via the 4 USB ports. Music content on a USB drive can be played back locally, or on any or all HEOS players on the network.
Music Downloads: DRM-free downloads from any service**
Internet Radio Supported: Streaming MP3, AAC and WMA
Album Art Supported: JPG, PNG, BMP and GIF picture formats
Audio Formats Supported: HEOS Drive HS2 supports MP3 and WMA music files, as well
as AAC (MPEG4) and FLAC (lossless) file types, along with WAV files from compatible music servers.
*Subject to availability in your area **Subject to audio format support
NETWORKING
Wired Connectivity: Dual RJ-45 jack for connection to wired Ethernet
MATRIX SWITCHING
Multiple Analogue and Digital Inputs:
• 4 stereo analogue
• 2 optical digital
• 2 coaxial digital inputs
GENERAL
Power Supply: 100~240 Volts AC, 50~60 Hz auto- switching
Weight: 7.2 kg Operating Temperature: 5°C~35°C
Package Contents:
• HEOS Drive
• AC power cord
• Ethernet Cable
• Quick Start Guide • 2 rack ears
Buttons and Indicators:
• Power/standby
• Ethernet status 1/2
• Zones 1~4 active status
Dimensions (H x W x D):
88mm x 430mm x 402 mm (without rack ears) 88mm x 483mm x 402 mm (with rack ears)
Product Finish: Black
